Augmentation of pool boiling heat transfer using the laser treatment technology
Download

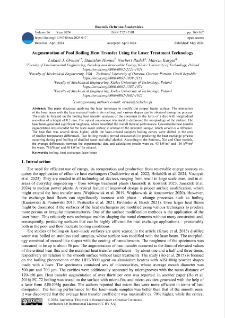

Title: Augmentation of pool boiling heat transfer using the laser treatment technology

Creator:

Orman, Łukasz J. ; Honus, Stanislav ; Radek, Norbert ; Kargul, Marcin

Date:

2024

Type:

artykuł w czasopiśmie

Alternative title:

Zwiększenie przenoszenia ciepła podczas wrzenia basenu za pomocą technologii obróbki laserowej

Description:

The paper discusses applying the laser technique to modify the copper heater surface. The interaction of the laser beam with the base material leads to its melting, and various shapes can be obtained during the process. The study is focused on the boiling heat transfer analyses of the specimen in the form of a disc with longitudinal microfins of a height of 0.5 mm. The optical microscope was used to determine the morphology of the surface. The laser beam generated significant roughness, which benefitted the overall thermal performance. Considerable heat transfer augmentation was recorded for the laser–made surface in relation to the untreated sample, which served as a reference. The heat flux was several times higher, while the laser–treated sample's boiling curves were shifted to the area of smaller temperature differences. Two boiling models proved unsuccessful in predicting the heat exchange process occurring during pool boiling of distilled water and ethyl alcohol. According to the Smirnov, Xin and Chao models, the average differences between the experimental data and calculation results were ca. 93 kW/m2 and 116 kW/m2 for water, 78 kW/m2 and 68 kW/m2 for ethanol.

Place of publishing:

Koszalin

Publisher:

Politechnika Koszalińska

Identifier:

oai:dlibra.tu.koszalin.pl:2058

Language:

eng

Is part of:

Rocznik Ochrona Środowiska. Vol. 26, s. 160-167

Rights:

Biblioteka Politechniki Koszalińskiej

Access rights:

internet

License:

Creative Commons BY-SA 4.0

Exlibris

Subject and keywords:

boiling laser beam heat exchanger

Object collections:

Last modified:

Oct 3, 2025

In our library since:

Oct 3, 2025

Number of object content hits:

16

All available object's versions:

https://dlibra.tu.koszalin.pl/publication/2068

Show description in RDF format:

RDF

Show description in OAI-PMH format:

OAI-PMH

Edition name Date
2024, Orman, Łukasz J., Augmentation of pool boiling heat transfer using the laser treatment technology Oct 3, 2025
